We are a leading Manufacturer, Supplier, Exporter of Cartridge Heaters, High Density Cartridge Heaters, Split Type Cartridge Heaters, Low Density Cartridge Heaters, Ceramic Cartridge Heaters and our setup is situated in Pune, Maharashtra, India.
Our selection of cartridge heaters provides reliable and efficient high-performance heating solutions. These heaters are specifically designed to fit blocks, dies, platens, and other applications. We offer a variety of wattages and watt densities to meet your needs. Our heaters are compatible with digital temperature control systems and are affordable. In addition, our cartridge heaters are versatile and can perform well in any environment. They are a smart choice for a range of heating needs.

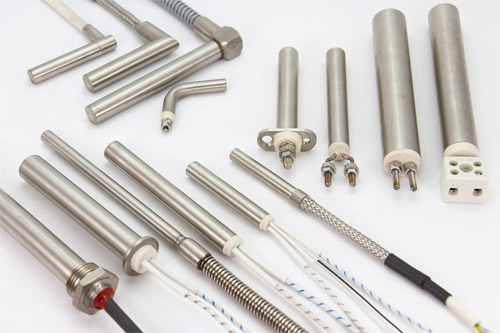

High Density Cartridge Heaters are made of nickel-chromium resistance wire wound on the MgO core. The element assembly is inserted into a chrome nickel steel tube centrally and filled with MgO powder. It is then compacted into a solid mass by Swaging. Swaging increases thermal conductivity, dielectric strength and heater life.
• Nickel Chrome resistance wire
• Available with inbuilt Thermocouple 'J' or 'K'
• Maximum sheath temperature 800° C
• Rugged & durable construction
• Available as per customer's specifications
• Plastic processing Machinery
• Moulds and Dies
• Hot Stamping
• Shoe Machinery
• Food Processing Machinery
• Packing Equipments
• Heating Gases & Liquids
• Medical Equipments
• Dia & length of the heater
• Watts and Volts
• Type of terminal
• Drawing for special type configuration

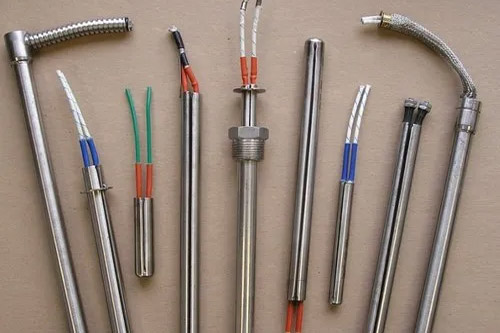

Split Type Cartridge Heaters are developed for temperature applications. Helically wound resistance placed inside the tube filled with MgO powder and campy for faster and efficient heat transfer.
• Nickel Chrome resistance wire
• Available in SS 304, SS 316 and Inconel sheath
• Maximum sheath temperature 800° C
• Plastic Processing & Packginng Machinery
• Injuction Blow Moulding
• Extruders
• Foundries
• For fast of tube bolt
• Soldering Pots
• Heating Gases & Liquids
• Medical Equipments
• Dia & length of the heater
• Watts and Volts
• Type of terminal
• Drawing for special type configuration

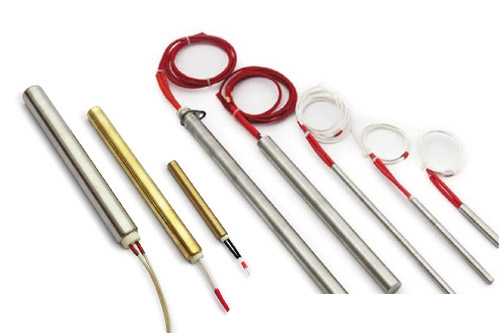

Low Density Cartridge Heaters are made of helically wound nickel chrome resistance wire evenly stretched and placed in ceramic insulators. The element assembly is inserted into Brass/SS 304 tube. High grade MgO powder is filled in the remaining space inside the ceramic insulator to increase thermal conductivity, dielectric strength and heater life.
• Nickel Chrome resistance wire
• Maximum operating temperature 250°C for Brass and 400°C. for SS 304
• Maximum surface load 4 watts / cm2
• Available from ∅ 8 mm to ∅ 45mrn and length 50mm to 3000mm
• Plastic Processing Machinery
• Injuction Blow Moulding
• Mould & Dies
• Hot Runner Bushing
• Food Processing Machine
• Packaging Machinery
• Medical Equipments
• Shoe Machinery
• Dia & length of the heater
• Wattage and Voltage
• Type of Terminal
• Drawing for special type configuration

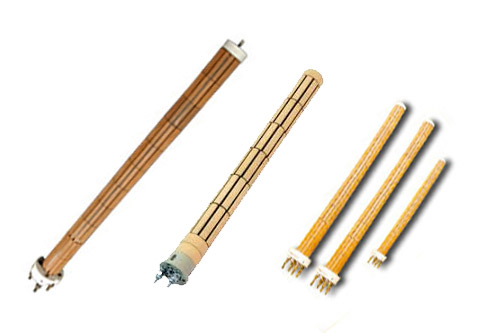

Ceramic Cartridge Heaters are made of helically wound resistance coil stretched and strung through series of open type ceramic insulators. The element is centrally supported by SS 304. For high temperature applications SS 316 (or) SS 310 rods are used for centre support.
• Nickel Chrome/Kanthal resistance wire
• Available in Dia 26mm to 55mm and Length 150mm to 3000mm
Surface watt density:
• For oils - 1.4 to 4 watts/cm2
• For water - 1 .4 to 8 watts/cm2
• For Metals - 2 to 5 watts/cm2
• For air 1 .6 to 3.2 watts/cm2
• Heating Liquids & Gases
• Dryers
• Ovens
• Printing Machinery
• Packing Machinery
• Dia & length of the heater
• Wattage and Voltage
• Type of Terminal
• Drawing for special type configuration
